WTC (50x300mm) RTR with fitting/conversion set for Trumpeter Soryu Class (Version with non operational bow planes)

Description

WTC RTR for Trumpeter “Japanese Soryu Class Attack Submarine” (05911).

Fitting/conversion set INCLUDED

Version with non operational fairwater (tower mounted) planes.

Measurements:

Outer tube diameter: 50mm/1,96″

WTC external length (including cap ends and servo pushrods with magnetic couplers): 400 mm/15,75 inches

WTC  Length (from one end cap to another): 330 mm/13 inches

Polycarbonate tube length: 300 mm/11.8 inches

Weight: 590 gram

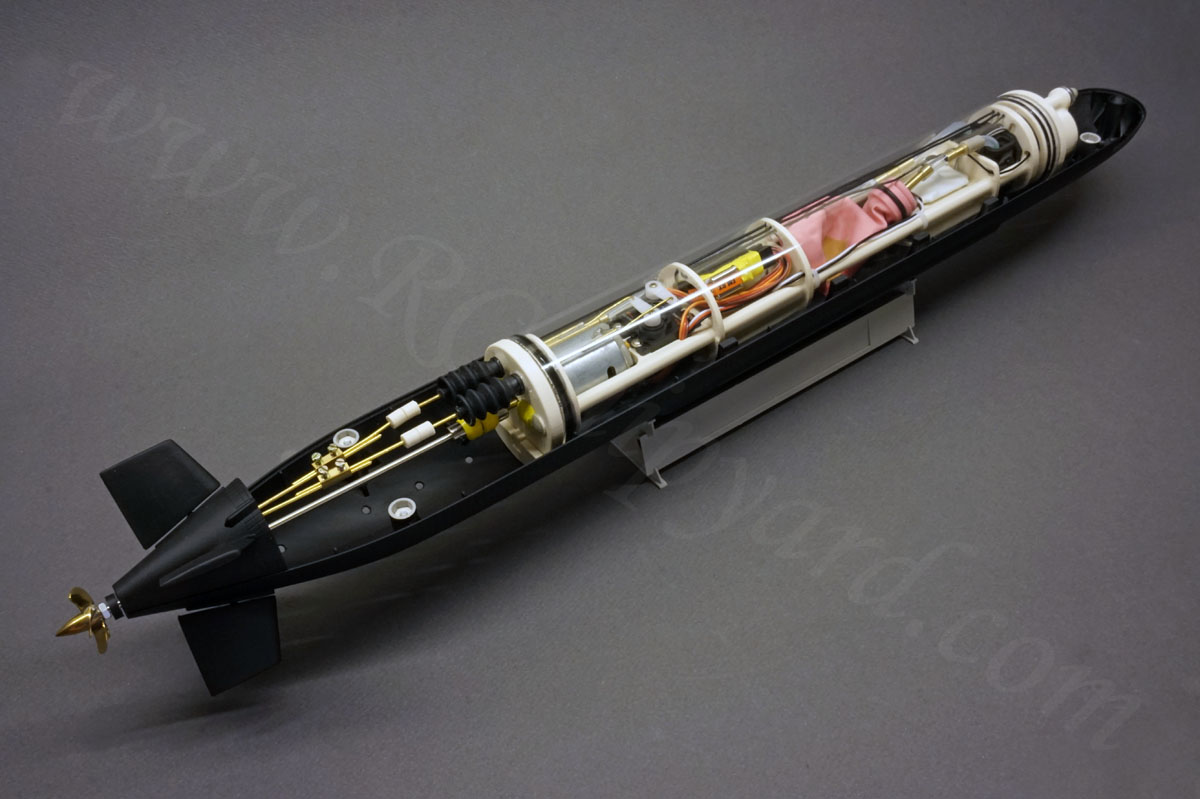

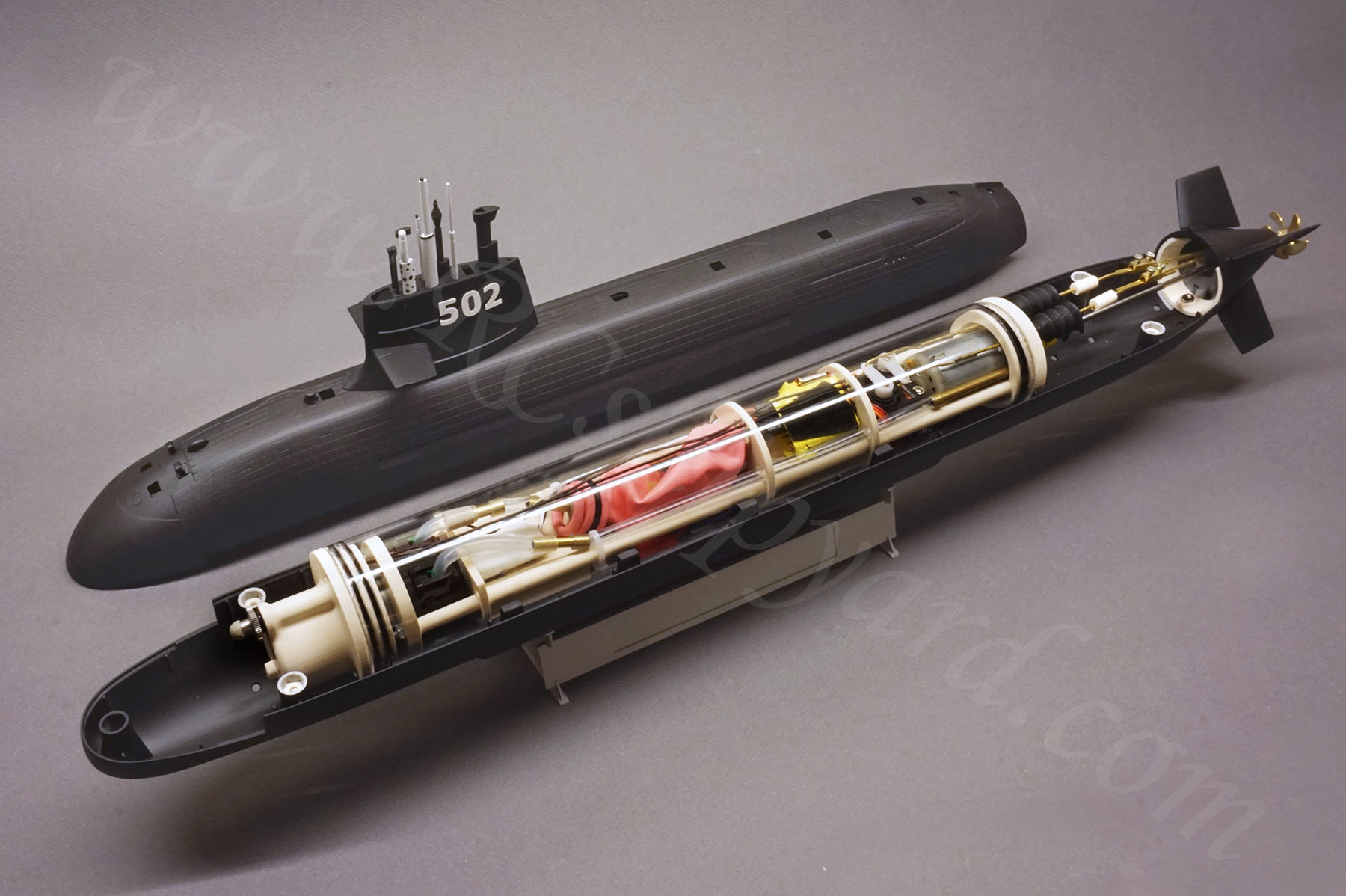

WTC mounted in the Trumpeter Soryu  model (05911):

This setup includes:

• Fitting SET (conversion KIT) for Trumpeter Soryu 1:144
• Pump
• Pump controller
• Drive motor
• ESC for drive motor
• Li-Ion battery pack (4 cells, 7.4V 1300mAh)
• 2 x High quality Corona or Emax servos (metal bearings, metal gears)
• PDF Manual (english)
• All plastic parts for the water tight container assembly
• Ballast tank with “quick lock” connector for easy replacement.
• Necessary brass tubing
• Necessary silicon tubing
• Main drive seal
• 2 Pushrods seals
• Pushrods
• Magnetic connectors (2 pairs)
• Polycarbonate tube
• Bow (front) end cap
• Stern (rear) end cap
• End cap seals
• all necessary screws, nuts and threads

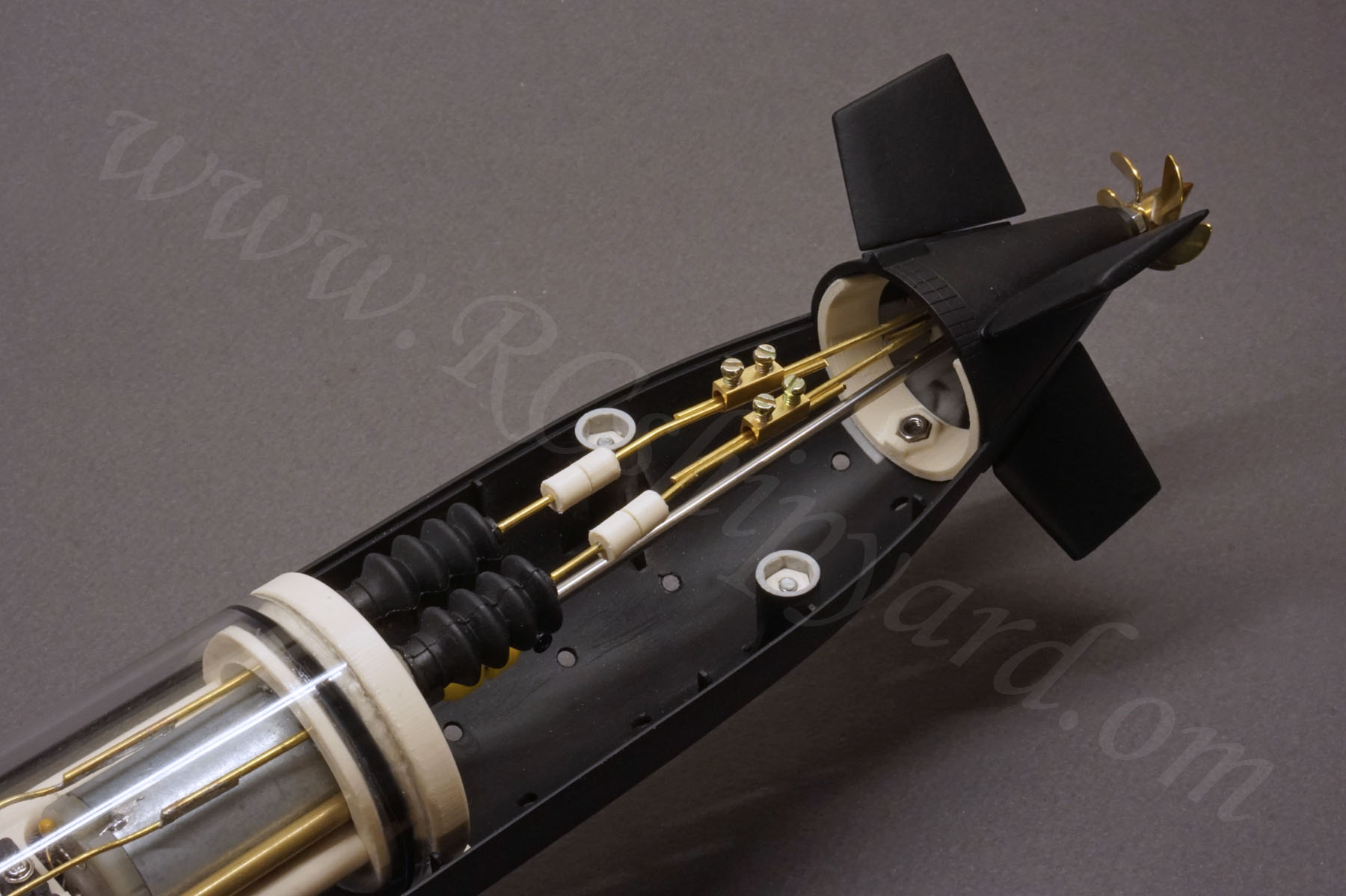

Stern mechanics with magnetic couplers and magnetic clutch for the drive shaft:

Ribs for quick an easy sliding in the WTC. There is no need for straps or rubber bands to hold the WTC in place.



---

The included fitting kit allows for an easy connection of the WTC with the plastic model. It’s especially designed for the Trumpeter Soryu Class Attack Submarine model and most likely will not fit other models. The fitting kit also allows for a perfect alignment of the upper and lower hull.

Fitting Set for Soryu Class Attack Submarine consists of :

• 4x ribs for easy mounting the WTC
• 4x rudders for replacing the fixed Trumpeter rudders
• Stern mounting ring (necessary for X rudder system built)
• All necessary brass elements for pushrods assembly
• 2x Magnetic shaft connectors (Pair joining the propeller shaft with motor shaft).
• Magnetic pushrods
• Threaded inserts for connecting and locking the upper hull with the lower hull
• WTC stern end stop



Slightly bigger dive planes and rudders allow better model manoeuvrability!

Still required to make the WTC operational:

• RC receiver and radio transmitter with mixer.

ATTENTION: This model requires the upper hull to be cut. It’s a difficult task, BUT ONLY if you don’t have the proper tools. If you don’t have a precise handsaw, we highly recommend our cutting set, which includes a very thin hand saw (0.36mm) and a special guiding rail for it. Then the task becomes stress free and very easy. You can use this KIT for your other projects in the future too. Just ask as about the saw and rail before or after the order.

Link to our cutting set (only 19.90 Euro): HERE.

With the sharp saw and our guiding rail for it, the cut line will be almost invisible. Check yourself on the photos below:

---



Trumpeter Japanese Soryu Class (Trumpeter number: 05911) NOT INCLUDED.

This is a fully assembled WTC, for an UNASSEMBLED KIT CLICK HERE. (Available soon)

Link to our cutting set (only 19.90 Euro): HERE.



This item requires extra time to ship as it needs to be assembled and TESTED. We usually ship it in 7 days.
