WTC KIT (50x400mm) with fitting/conversion set for Trumpeter Seawolf

Description

WTC KIT for the Trumpeter “USS SSN-21 Seawolf Attack Submarine” (05904), or any similar size model.

Version including the Fitting/Conversion KIT for

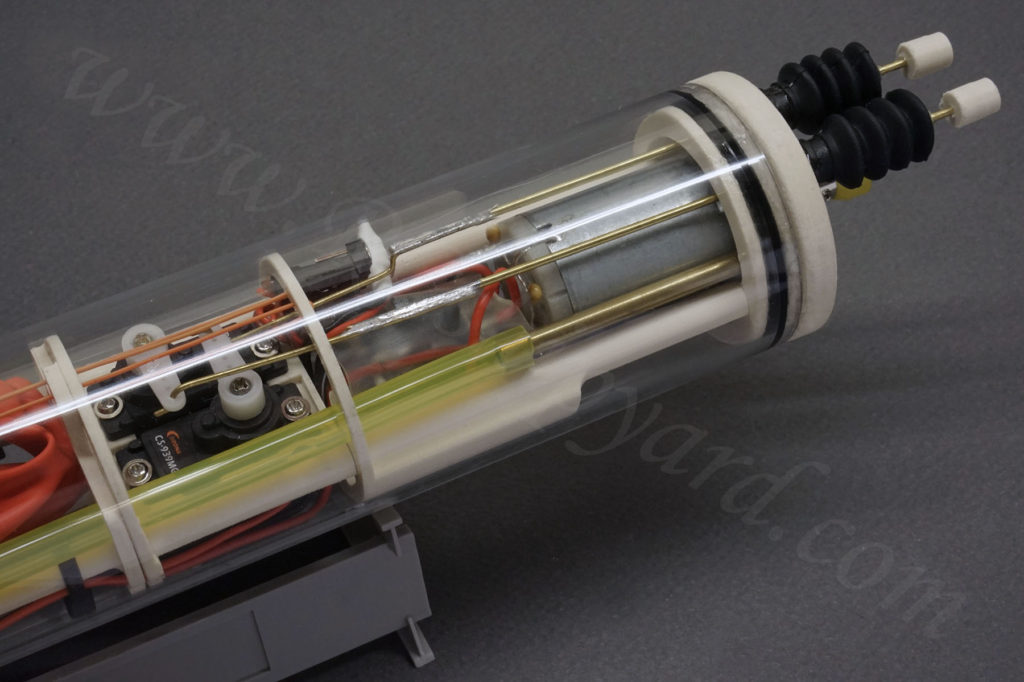

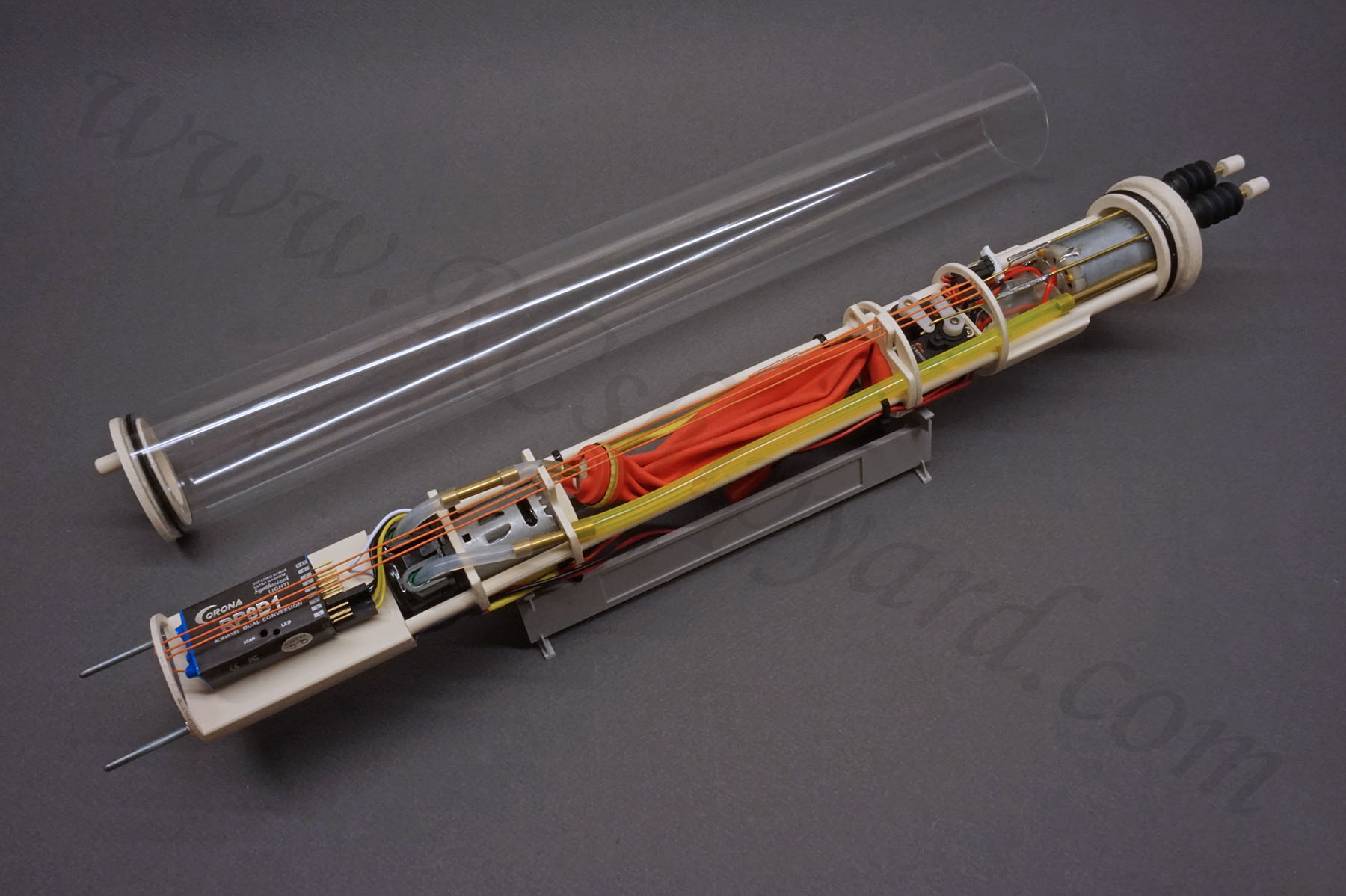

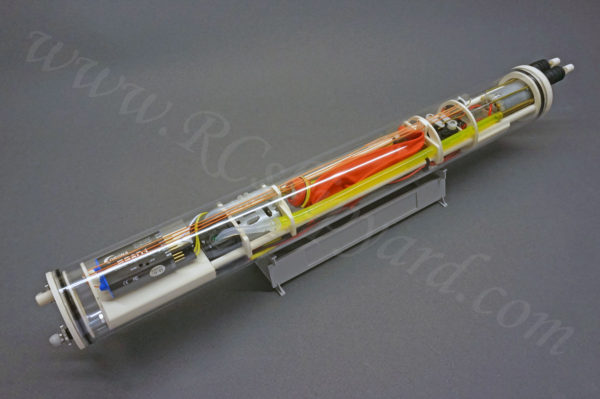

WTC Specs:

Outer tube diameter: 50mm/1.96″ WTC

External length (including cap ends and servo pushrods with magnetic couplers): 470 mm/18,50 inches

WTC Length (from one end cap to another): 410 mm/16,14 inches

Polycarbonate tube length: 400 mm/15.75 inches

Weight: 1150 grams

This setup includes:

• Fitting KIT (conversion KIT) for “USS SSN-21 Seawolf Attack Submarine” (05904) 1:144
• Pump
• Pump controller
• Drive motor
• ESC for drive motor
• 2S Li-Ion battery pack (Samsung or LG cells, 7.4V)
• PDF Assembly Manual (English)
• All plastic parts for the water tight container assembly
• Ballast tank with “quick lock” connector for easy replacement.
• Necessary brass tubing
• Necessary silicon tubing
• Main drive seal
• 2 Pushrods seals
• Pushrods
• Magnetic connectors (3 pairs)
• Polycarbonate tube
• Bow (front) end cap
• Stern (rear) end cap
• End cap o-rings
• all necessary screws, nuts and threads

The fitting kit allows for an easy connection of the WTC with the plastic model. It’s especially designed for the Trumpeter Seawolf and most likely will not fit other models. The fitting kit also allows for a perfect alignment of the upper and lower hull.

Fitting Kit (conversion KIT) for “USS SSN-21 Seawolf Attack Submarine” (05904) consists of :

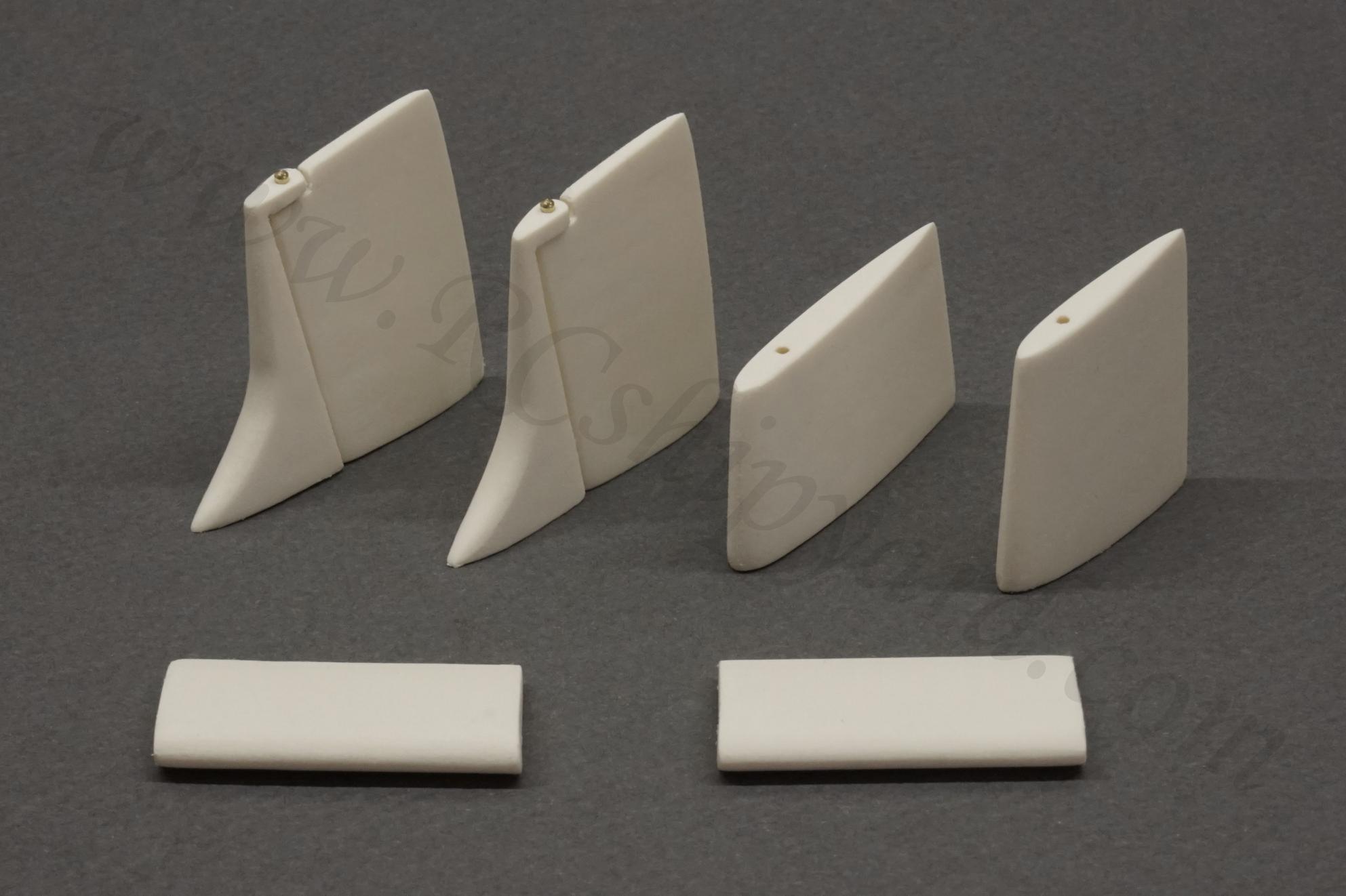

• New set of rudders and dive planes for a full RC conversion.
• Stern mechanics (All required parts for self  assembly)
• 7x ribs (4 for the lower hull and 3 for the upper hull) as the WTC mount, they also allow for good alignment of the upper and lower hull.
• WTC stern endstop
• External rib for the Seawolf bow planes pushrod with magnetic coupler (If you want to have operational dive planes)

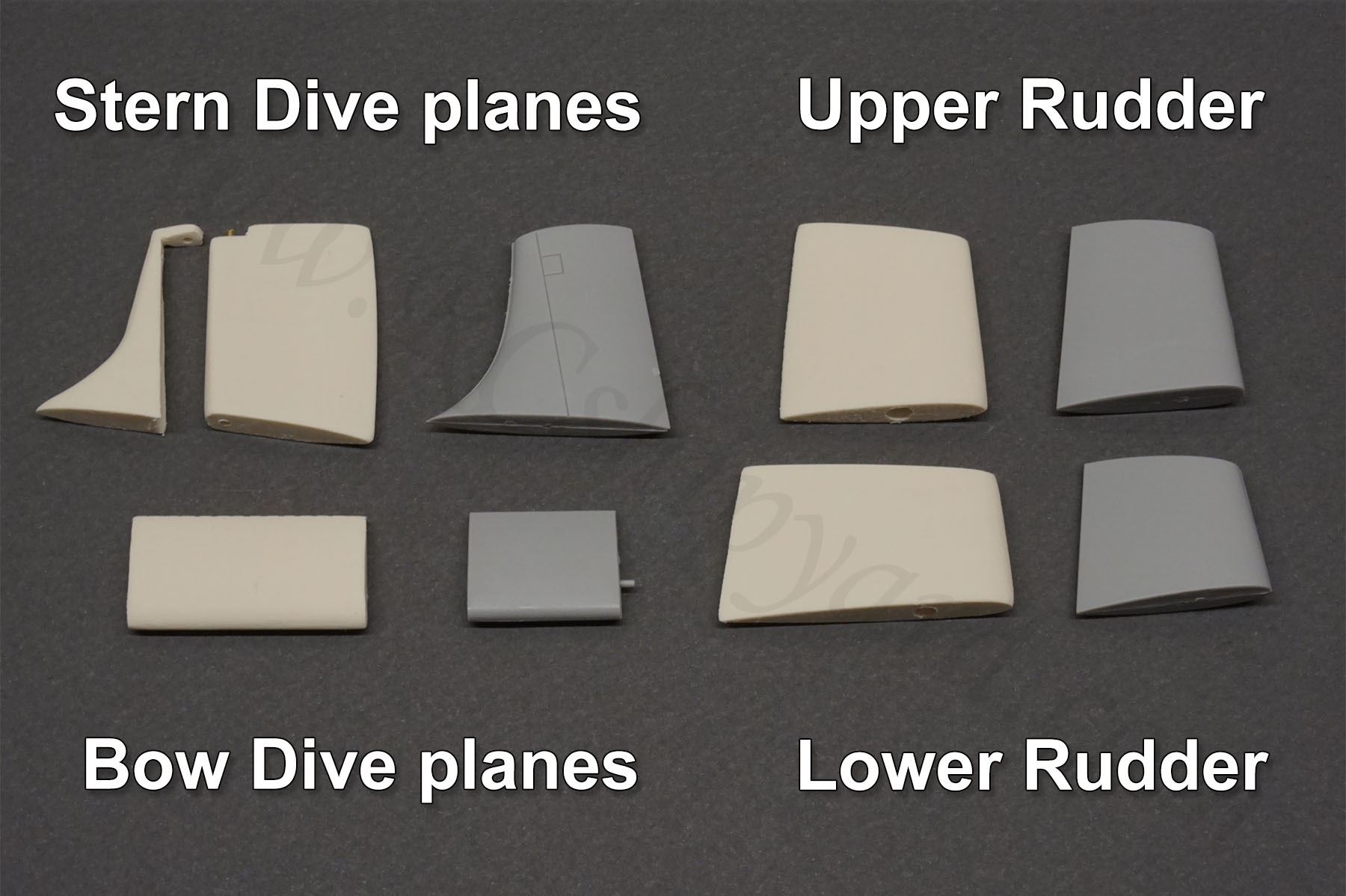

Slightly bigger dive planes and rudders allow better model manoeuvrability!

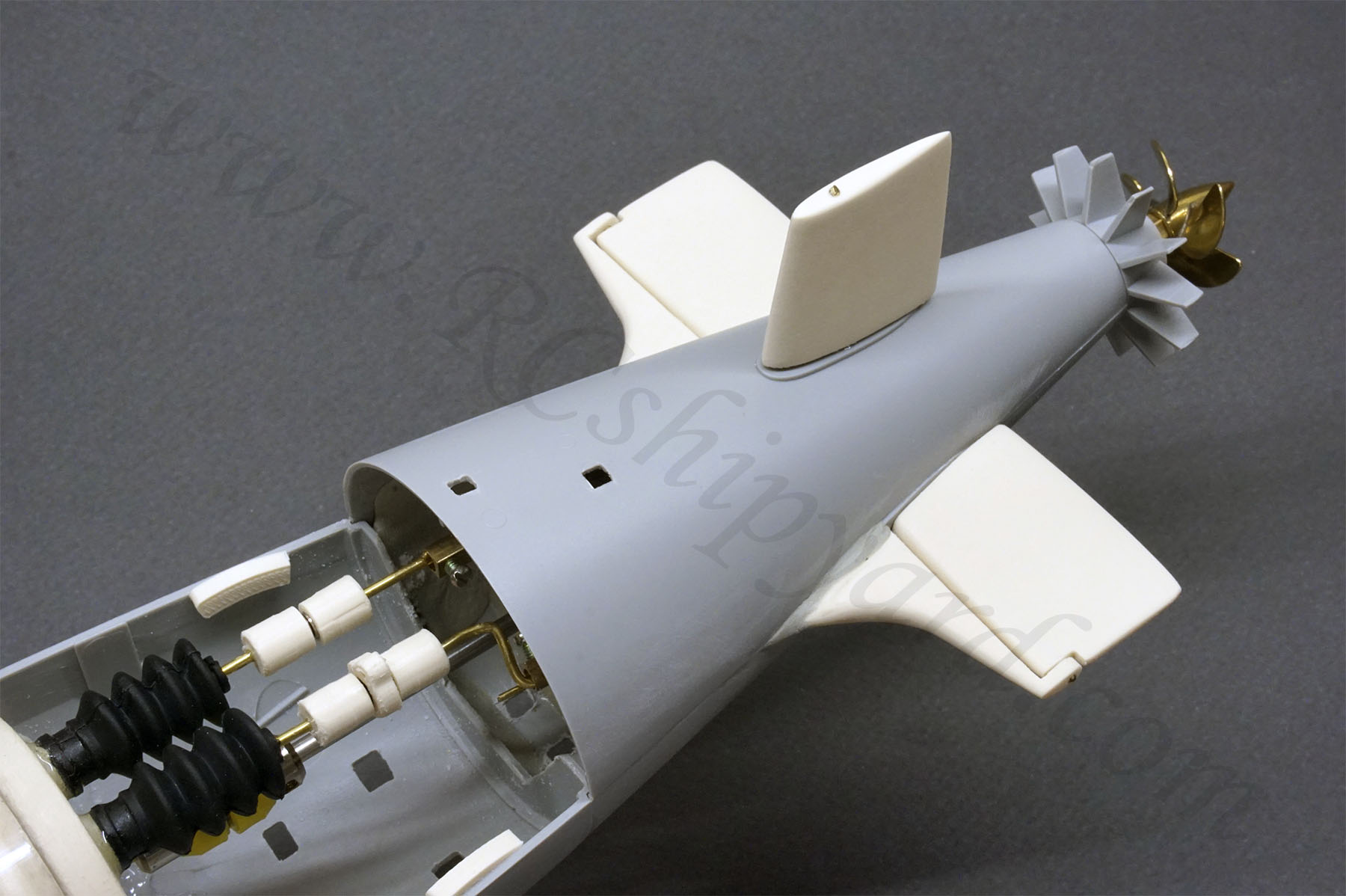

Stern dive planes with a hinge like the real vessel!

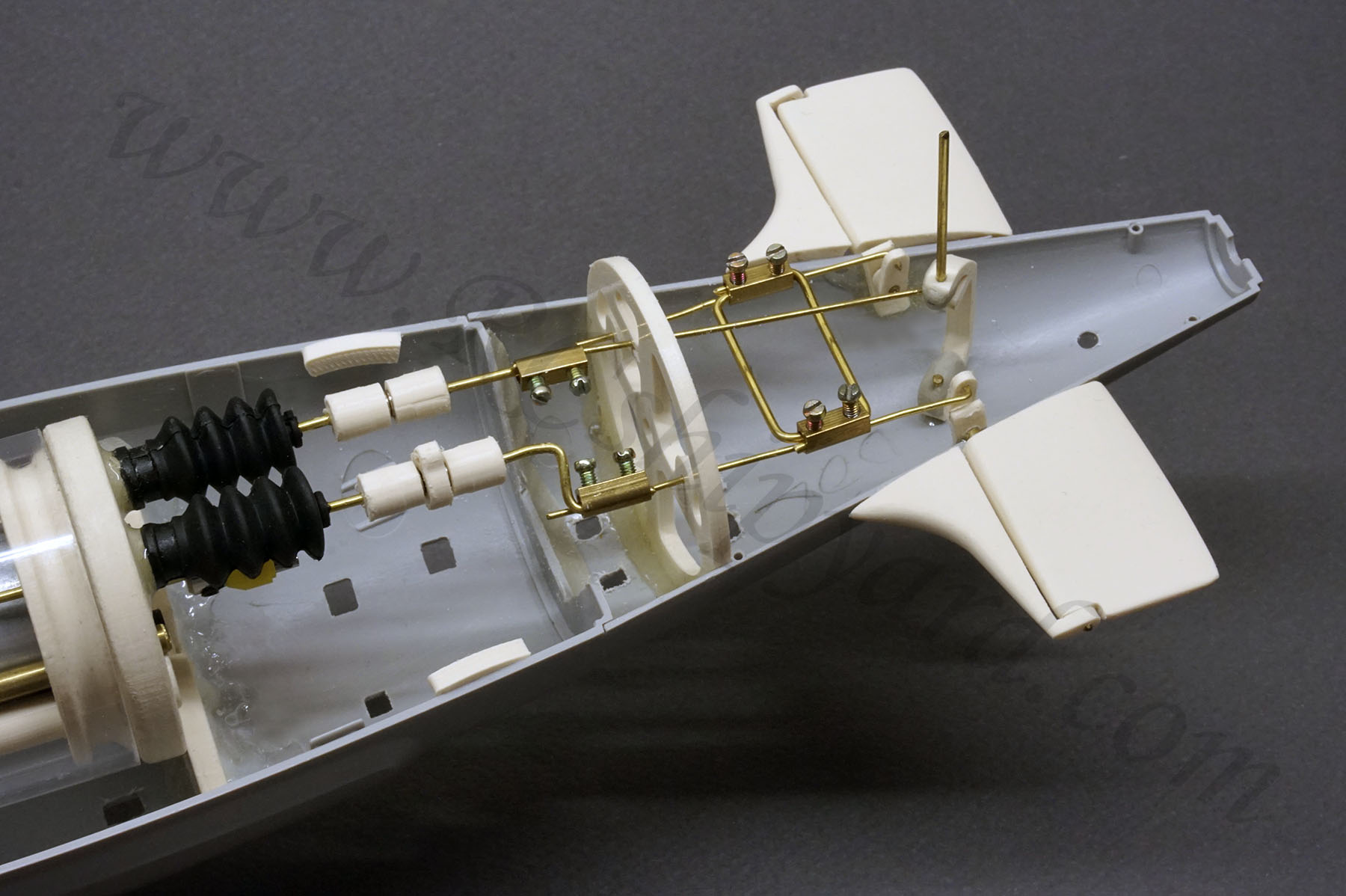

Stern mechanics:

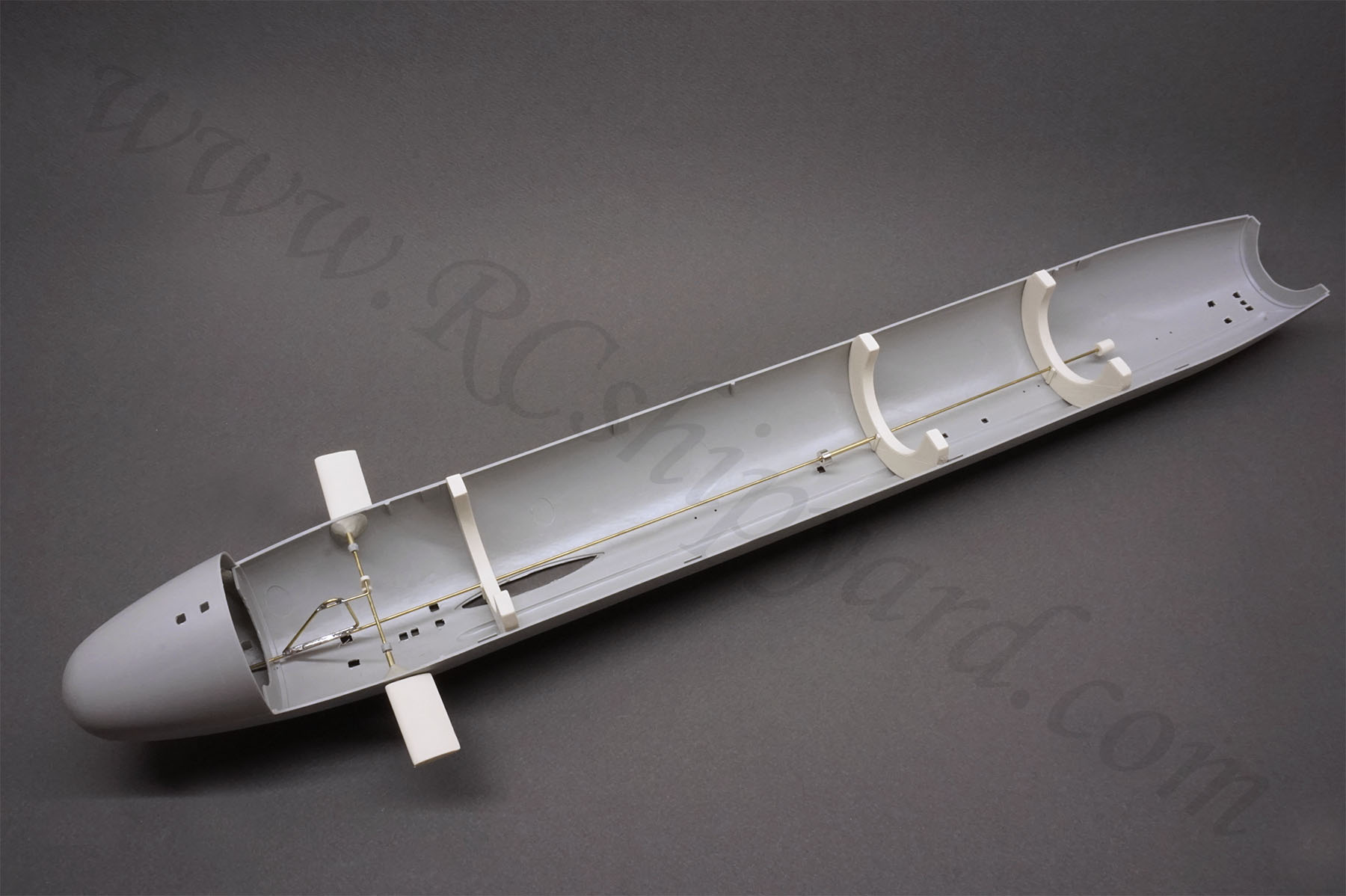

The ribs for the upper  hull:

The ribs for the lower hull with the WTC already slid in:

Still required to make the WTC operational:

• RC receiver and radio transmitter.
• 2 x micro servos (Corona CS-939MG recommended)

Trumpeter “USS SSN-21 Seawolf Attack Submarine” (05904) 1:144 model not included!

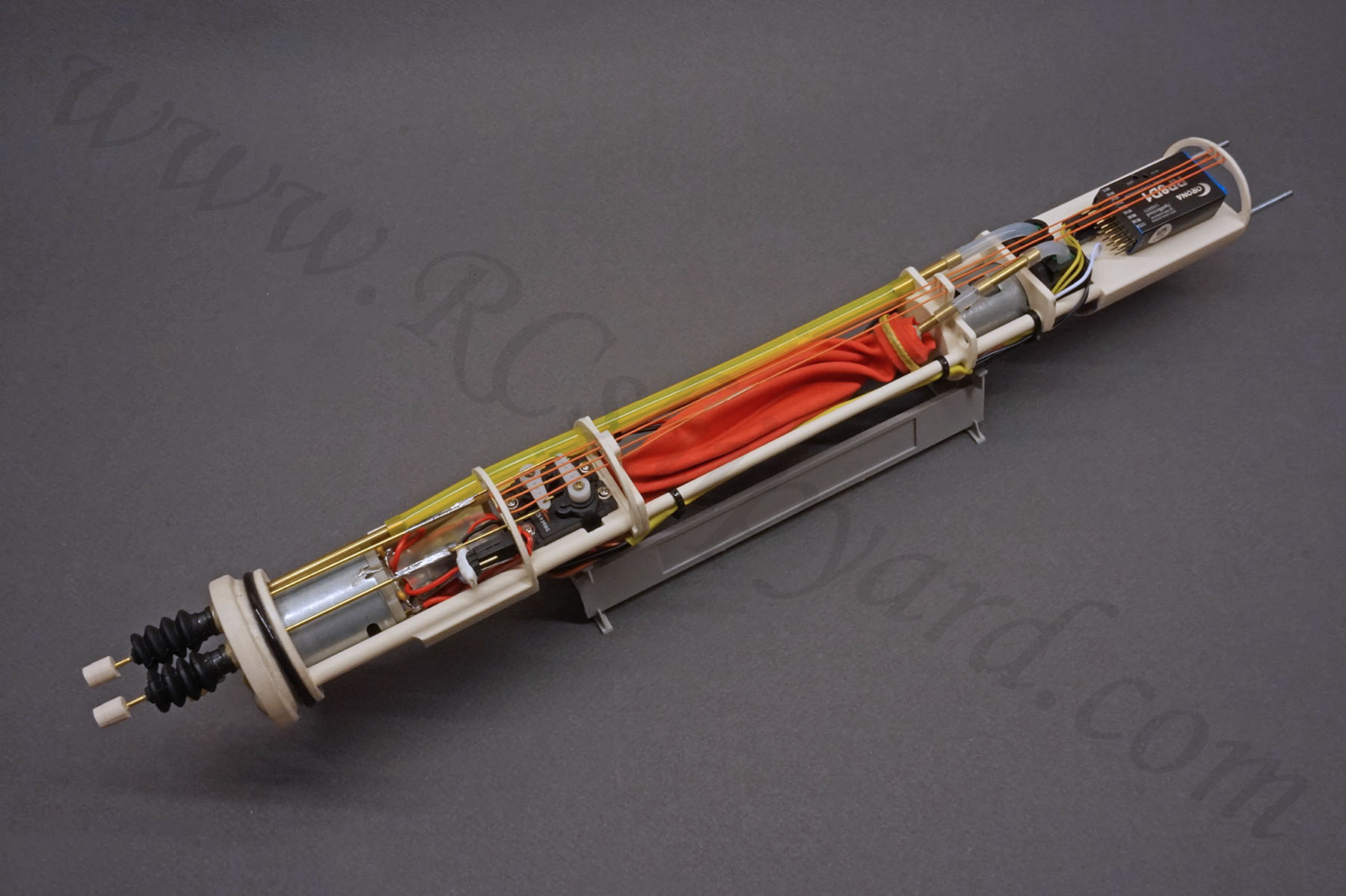

This is an unassembled KIT. It requires some basic knowledge and experience about RC models. It also requires some precision and patience, but allows to construct a fully operationial WTC, exactly like the one on the photos.

For the assembled, ready to use version of the WTC RTR CLICK HERE.

The building thread of my personal Trumpeter Seawolf with lots of photos can be found HERE.
