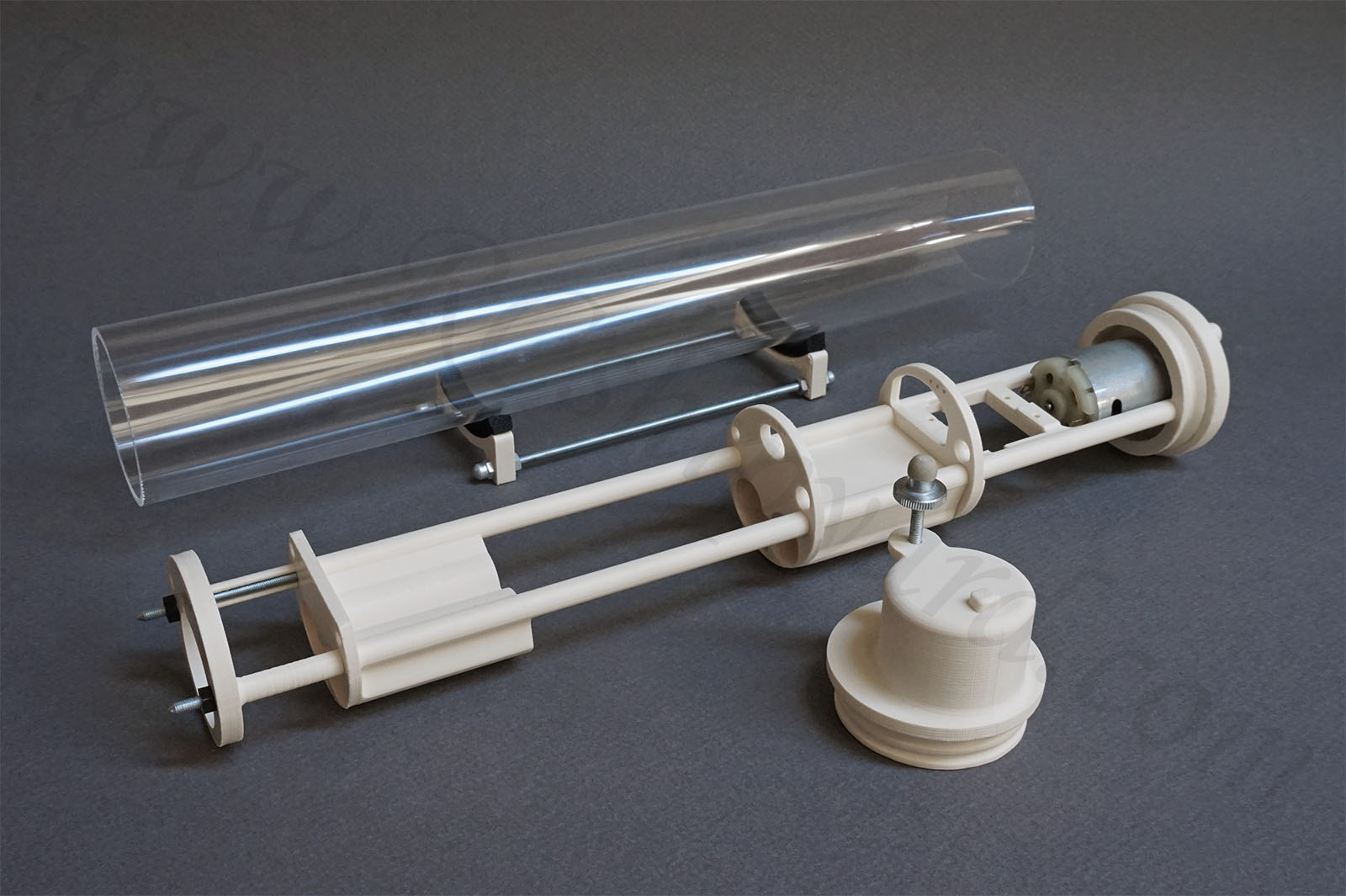

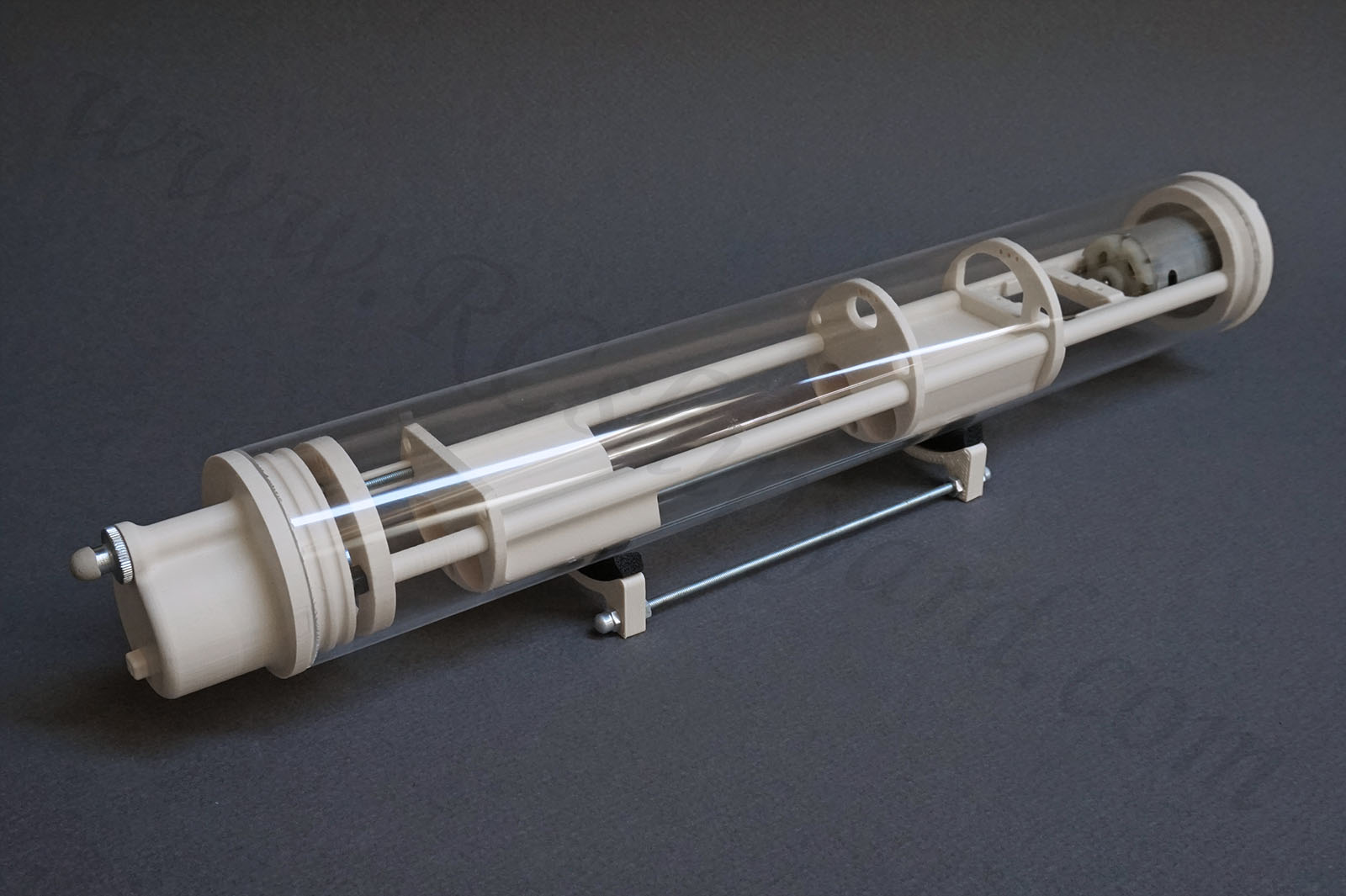

WTC (50x300mm) KIT with electric motor, but no electronics, no dive system.

Description

WTC Kit with main motor. No electronics, no ballast system.

Measurements:

Outer tube diameter: 50mm/1,96″

WTC external length (including cap ends and servo pushrods with magnetic couplers): 400 mm/15,75 inches

WTC  Length (from one end cap to another): 330 mm/13 inches

Polycarbonate tube length: 300 mm/11.8 inches

Fits Trumpeter models:

• Trumpeter Russian Kilo Class Submarine (Trumpeter number: o5903)

• Trumpeter Japanese Soryu Class Attack Submarine (Trumpeter number: 05911)

This setup includes:

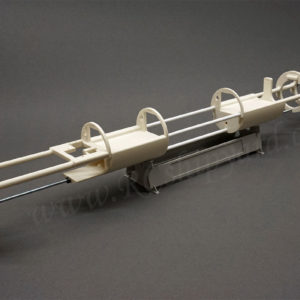

• All plastic parts for the water tight container assembly
• Main drive seal
• Main drive motor
• 2 Pushrods seals
• Polycarbonate tube
• Bow (front) end cap
• Stern (rear) end cap
• End cap seals
• all necessary screws, nuts and threads

This is a basic KIT. It doesn’t include any ballast system (no pump, no pump controller, no bladder, no tubing) no ESC, no servos, no batteries (max battery size is: 14/50mm diameter/length)

No fitting kit included.

Requires to run:

• ballast system
• ESC
• servos
• batteries
• RC receiver

This is the WTC, which  I have used for building  my personal Trumpeter Kilo. You can see the building thread with lots of photos can be found HERE.
