WTC (50x300mm) RTR with fitting/conversion set for Trumpeter Kilo

Description

WTC assembled and Ready To Run for Trumpeter “Russian Kilo Class Attack Submarine” (o5903).

Version with fitting (conversion) kit:

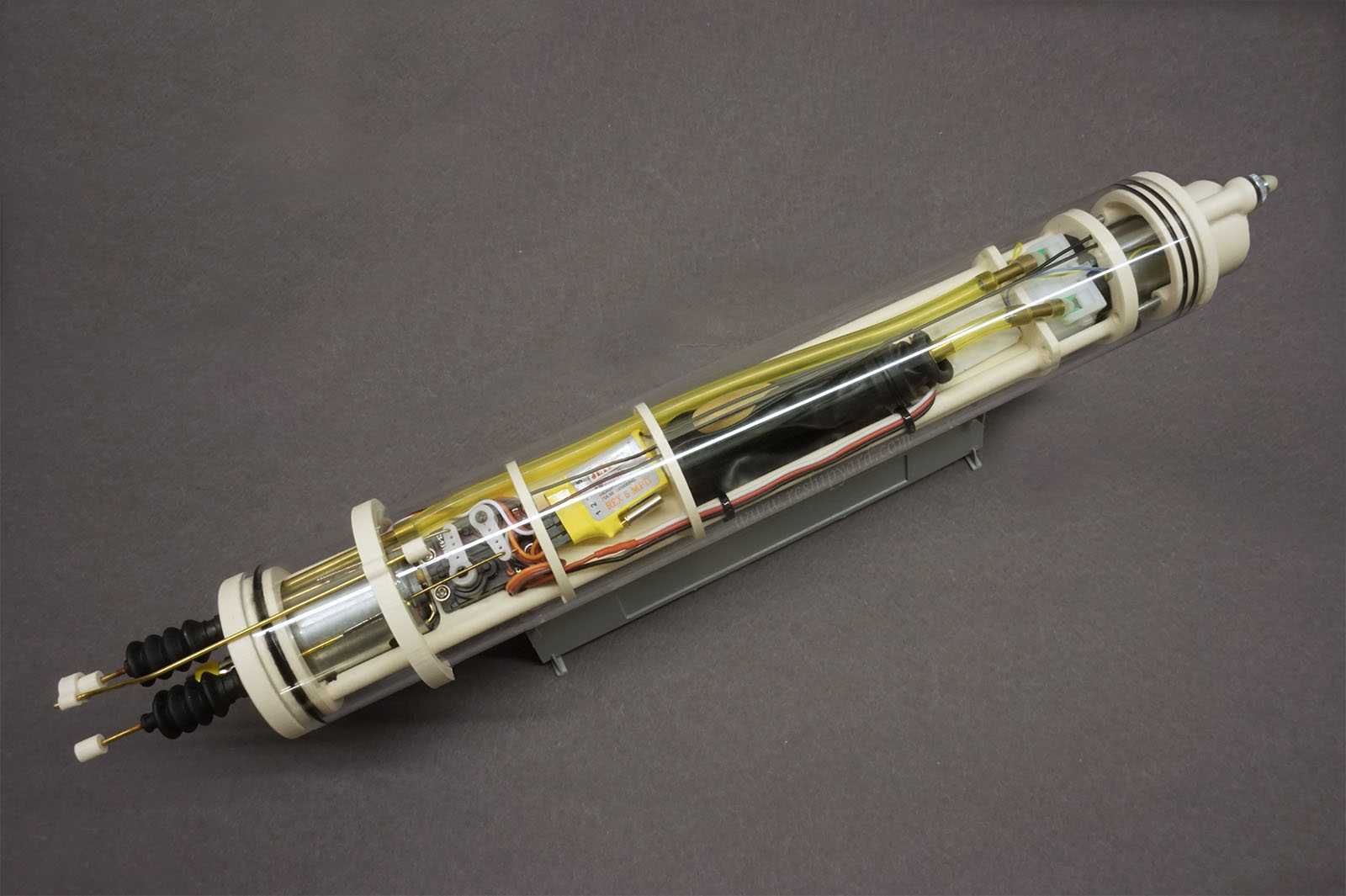

This is a Ready To Run Water Tight Cylinder, just charge the batteries, connect your receiver and it’s ready for use.

Measurements:

Outer tube diameter: 50mm/1,96″

WTC external length (including cap ends and servo pushrods with magnetic couplers): 400 mm/15,75 inches

WTC  Length (from one end cap to another): 330 mm/13 inches

Polycarbonate tube length: 300 mm/11.8 inches

Weight: 590 gram

The assembled WTC for Trumpeter Kilo includes:

• Fitting KIT (conversion KIT) for Trumpeter Kilo 1:144
• Pump
• Pump controller
• Drive motor
• ESC for drive motor
• Li-Ion battery pack (4cells, 7.4V 1300mAh)
• 2 x High quality Corona or Emax servos (metal bearings, metal gears)
• PDF Manual (english)
• All plastic parts for the water tight container assembly
• Ballast tank with “quick lock” connector for easy replacement.
• Necessary brass tubing
• Necessary silicon tubing
• Main drive seal
• 2 Pushrods seals
• Pushrods
• Magnetic connectors (3 pairs)
• Polycarbonate tube
• Bow (front) end cap
• Stern (rear) end cap
• End cap seals
• all necessary screws, nuts and threads

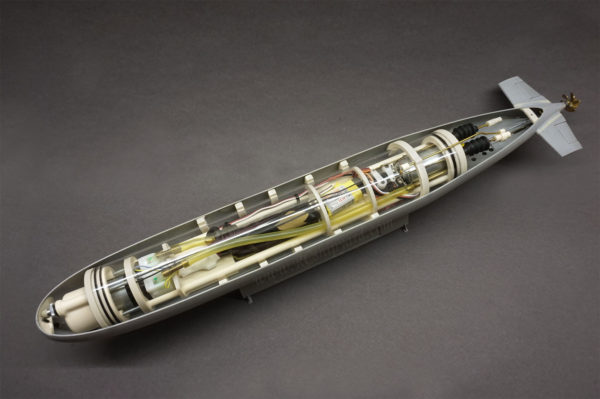

The fitting kit allows for an easy connection of the WTC with the plastic model. It’s especially designed for the Trumpeter Kilo and most likely will not fit other models. The fitting kit also allows for a perfect alignment of the upper and lower hull.

Fitting kit for Trumpeter Kilo consists of :

• 5x ribs as the WTC mount, they also allow for perfect alignment of the upper and lower hull.
• 2x Magnetic shaft connectors (Pair joining the propeller shaft with motor shaft).
• Bow plate for locking the upper hull half.
• Aft plate for locking the upper hull half.
• WTC aft endstop.
• External rib for the Kilos bow planes pushrod (with magnetic coupler).

Still required to make the WTC operational:

• Your own RC receiver and radio transmitter

Trumpeter Kilo 1:144 model not included!

This is a fully assembled WTC, for an UNASSEMBLED KIT CLICK HERE.

This item requires extra time to ship as it needs to be assembled and TESTED. We usually ship it in 7 days.

The building thread of my personal Trumpeter Kilo with lots of photos can be found HERE.
