WTC Kit with main motor. No electronics, no ballast system.
Measurements:
Outer tube diameter: 50mm/1,96″
WTC external length (including cap ends and servo pushrods with magnetic couplers): 400 mm/15,75 inches
WTC Length (from one end cap to another): 330 mm/13 inches
Polycarbonate tube length: 300 mm/11.8 inches
Fits Trumpeter models:
-
Trumpeter Russian Kilo Class Submarine (Trumpeter number: o5903)
-
Trumpeter Japanese Soryu Class Attack Submarine (Trumpeter number: 05911)
This setup includes:
- All plastic parts for the water tight container assembly
- Main drive seal
- Main drive motor
- 2 Pushrods seals
- Polycarbonate tube
- Bow (front) end cap
- Stern (rear) end cap
- End cap seals
- all necessary screws, nuts and threads
This is a basic KIT. It doesn’t include any ballast system (no pump, no pump controller, no bladder, no tubing) no ESC, no servos, no batteries (max battery size is: 14/50mm diameter/length)
No fitting kit included.
Requires to run:
- ballast system
- ESC
- servos
- batteries
- RC receiver

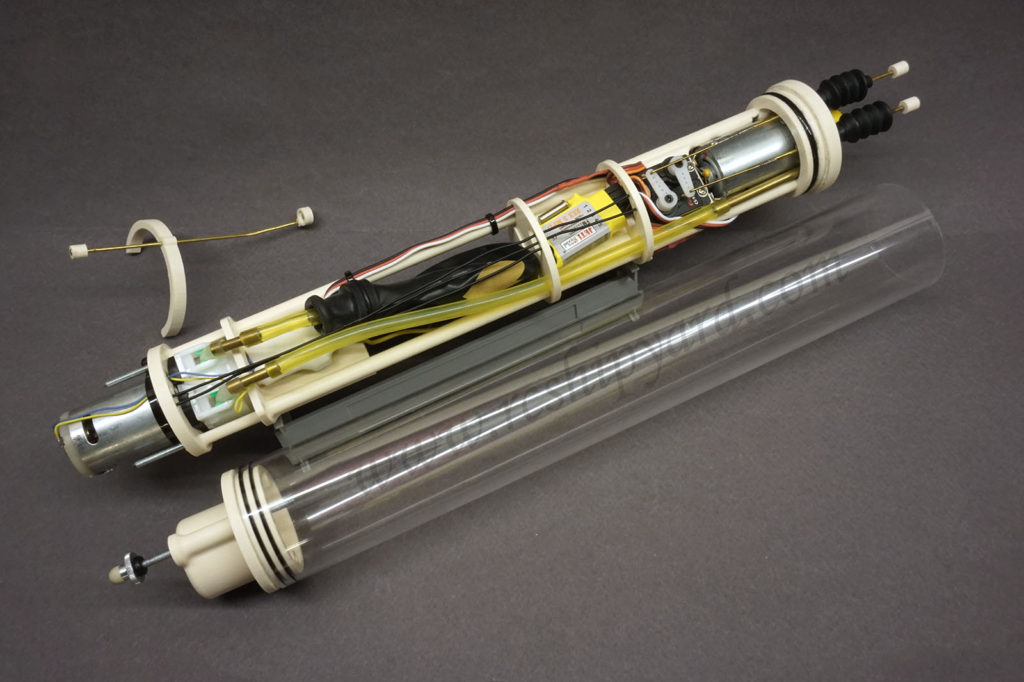

This is the WTC, which I have used for building my personal Trumpeter Kilo. You can see the building thread with lots of photos can be found HERE.

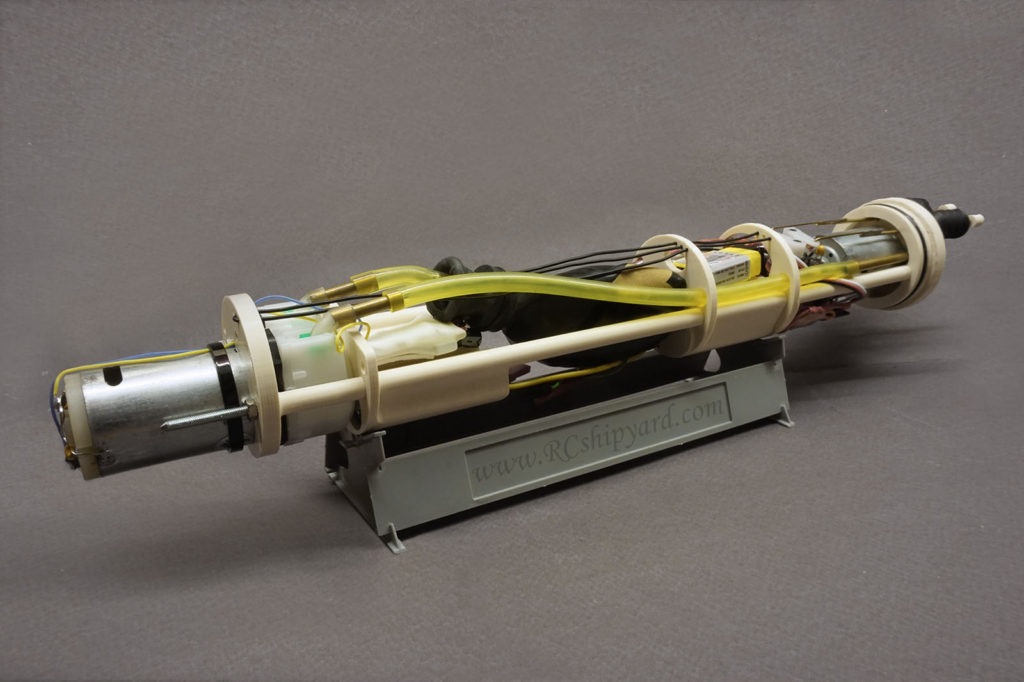

WTC assembled and Ready To Run for Trumpeter “Russian Kilo Class Attack Submarine” (o5903).
Version with fitting (conversion) kit:
This is a Ready To Run Water Tight Cylinder, just charge the batteries, connect your receiver and it’s ready for use.
Measurements:
Outer tube diameter: 50mm/1,96″
WTC external length (including cap ends and servo pushrods with magnetic couplers): 400 mm/15,75 inches
WTC Length (from one end cap to another): 330 mm/13 inches
Polycarbonate tube length: 300 mm/11.8 inches
Weight: 590 gram
The assembled WTC for Trumpeter Kilo includes:
- Fitting KIT (conversion KIT) for Trumpeter Kilo 1:144
- Pump
- Pump controller
- Drive motor
- ESC for drive motor
- Li-Ion battery pack (4cells, 7.4V 1300mAh)
- 2 x High quality Corona or Emax servos (metal bearings, metal gears)
- PDF Manual (english)
- All plastic parts for the water tight container assembly
- Ballast tank with “quick lock” connector for easy replacement.
- Necessary brass tubing
- Necessary silicon tubing
- Main drive seal
- 2 Pushrods seals
- Pushrods
- Magnetic connectors (3 pairs)
- Polycarbonate tube
- Bow (front) end cap
- Stern (rear) end cap
- End cap seals
- all necessary screws, nuts and threads
The fitting kit allows for an easy connection of the WTC with the plastic model. It’s especially designed for the Trumpeter Kilo and most likely will not fit other models. The fitting kit also allows for a perfect alignment of the upper and lower hull.
Fitting kit for Trumpeter Kilo consists of :

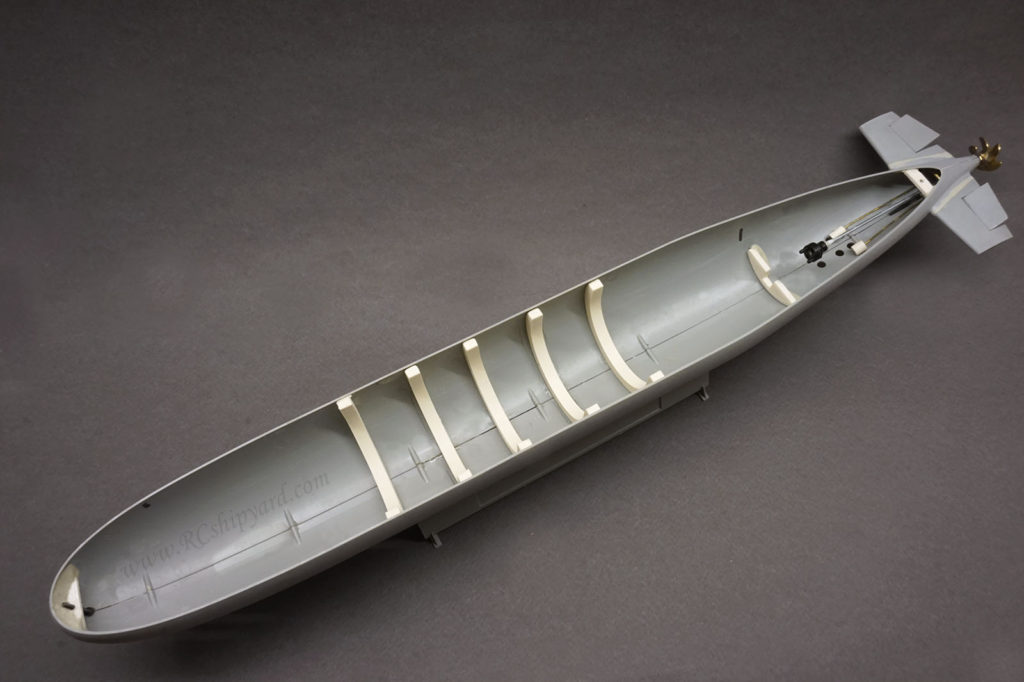

- 5x ribs as the WTC mount, they also allow for perfect alignment of the upper and lower hull.
- 2x Magnetic shaft connectors (Pair joining the propeller shaft with motor shaft).
- Bow plate for locking the upper hull half.
- Aft plate for locking the upper hull half.
- WTC aft endstop.
- External rib for the Kilos bow planes pushrod (with magnetic coupler).
Still required to make the WTC operational:
- Your own RC receiver and radio transmitter
Trumpeter Kilo 1:144 model not included!
This is a fully assembled WTC, for an UNASSEMBLED KIT CLICK HERE.
This item requires extra time to ship as it needs to be assembled and TESTED. We usually ship it in 7 days.
The building thread of my personal Trumpeter Kilo with lots of photos can be found HERE.
WTC RTR for Trumpeter “Japanese Soryu Class Attack Submarine” (05911).
Fitting/conversion set INCLUDED
Version with non operational fairwater (tower mounted) planes.
Measurements:
Outer tube diameter: 50mm/1,96″
WTC external length (including cap ends and servo pushrods with magnetic couplers): 400 mm/15,75 inches
WTC Length (from one end cap to another): 330 mm/13 inches
Polycarbonate tube length: 300 mm/11.8 inches
Weight: 590 gram
WTC mounted in the Trumpeter Soryu model (05911):
This setup includes:
- Fitting SET (conversion KIT) for Trumpeter Soryu 1:144
- Pump
- Pump controller
- Drive motor
- ESC for drive motor
- Li-Ion battery pack (4 cells, 7.4V 1300mAh)
- 2 x High quality Corona or Emax servos (metal bearings, metal gears)
- PDF Manual (english)
- All plastic parts for the water tight container assembly
- Ballast tank with “quick lock” connector for easy replacement.
- Necessary brass tubing
- Necessary silicon tubing
- Main drive seal
- 2 Pushrods seals
- Pushrods
- Magnetic connectors (2 pairs)
- Polycarbonate tube
- Bow (front) end cap
- Stern (rear) end cap
- End cap seals
- all necessary screws, nuts and threads
Stern mechanics with magnetic couplers and magnetic clutch for the drive shaft:
Ribs for quick an easy sliding in the WTC. There is no need for straps or rubber bands to hold the WTC in place.
The included fitting kit allows for an easy connection of the WTC with the plastic model. It’s especially designed for the Trumpeter Soryu Class Attack Submarine model and most likely will not fit other models. The fitting kit also allows for a perfect alignment of the upper and lower hull.
Fitting Set for Soryu Class Attack Submarine consists of :
- 4x ribs for easy mounting the WTC
- 4x rudders for replacing the fixed Trumpeter rudders
- Stern mounting ring (necessary for X rudder system built)
- All necessary brass elements for pushrods assembly
- 2x Magnetic shaft connectors (Pair joining the propeller shaft with motor shaft).
- Magnetic pushrods
- Threaded inserts for connecting and locking the upper hull with the lower hull
- WTC stern end stop
Slightly bigger dive planes and rudders allow better model manoeuvrability!
Still required to make the WTC operational:
- RC receiver and radio transmitter with mixer.
ATTENTION: This model requires the upper hull to be cut. It’s a difficult task, BUT ONLY if you don’t have the proper tools. If you don’t have a precise handsaw, we highly recommend our cutting set, which includes a very thin hand saw (0.36mm) and a special guiding rail for it. Then the task becomes stress free and very easy. You can use this KIT for your other projects in the future too. Just ask as about the saw and rail before or after the order.
With the sharp saw and our guiding rail for it, the cut line will be almost invisible. Check yourself on the photos below:
Trumpeter Japanese Soryu Class (Trumpeter number: 05911) NOT INCLUDED.
This is a fully assembled WTC, for an UNASSEMBLED KIT CLICK HERE. (Available soon)
This item requires extra time to ship as it needs to be assembled and TESTED. We usually ship it in 7 days.
Battery compartment module for the 50mm module and 34mm rack.
This is a largest battery compartment module for a tube with 46mm inner diameter and 50mm outer diameter (1.8/2inches).
- Designed to store two Li-Ion 18650 batteries.
- Designed for 50mm tube
- Tray rack size: 34mm
- Element length: 71.4mm
This includes:
Electronics and battery deck for Engels Akula K-317.
This kit consists out of:
- Plastic deck designed to fit the Engels Akula K-317 model.
- Two Li-Fe Cells of combined parameters of 6.6V 10000mAh (YES 10Ah!)
- All the necessary screws.
- Deck mounts for the TMAX2 controller (Tmax2 controller not included).
- Mounts for two standard size servos (servos not included).
- Place for the RC receiver (RC receiver not included)
Battery details:
- Nominal cell voltage 3.3V (charging voltage: 3.7V)
- recommended charging current: 1C (10A), Max 2C (20A)
- continues discharge current: 10C (100A)
- 80% capacity after 2000 cycles!
This version INCLUDES the 10000mAh Li-Fe battery pack. For the version without the batteries CLICK HERE.
Large compartment module for the 50mm module and 34mm rack.
This is a large compartment module for a tube with 46mm inner diameter and 50mm outer diameter (1.8/2inches). Used if you need some extra space – for example for a big ESC or Pitch controller.
- Designed for 50mm tube
- Tray rack size: 34mm
- Element length: 74mm
- Length of the flat surface for the additional electronic: 40mm
This includes:
Li-Fe 10000 mAh for the Engels Akula Deck – single cell.
A single Li-Fe cell for the Engels Akula electronic deck.
- Nominal cell voltage 3.3V (charging voltage: 3.7V)
- Dimensions: 38mmx122 mm
- Weight: 337g.
- recommended charging current: 1C (10A), Max 2C (20A)
- continues discharge current: 10C (100A)
- 80% capacity after 2000 cycles!
AA size battery is just for scale and it’s not included.

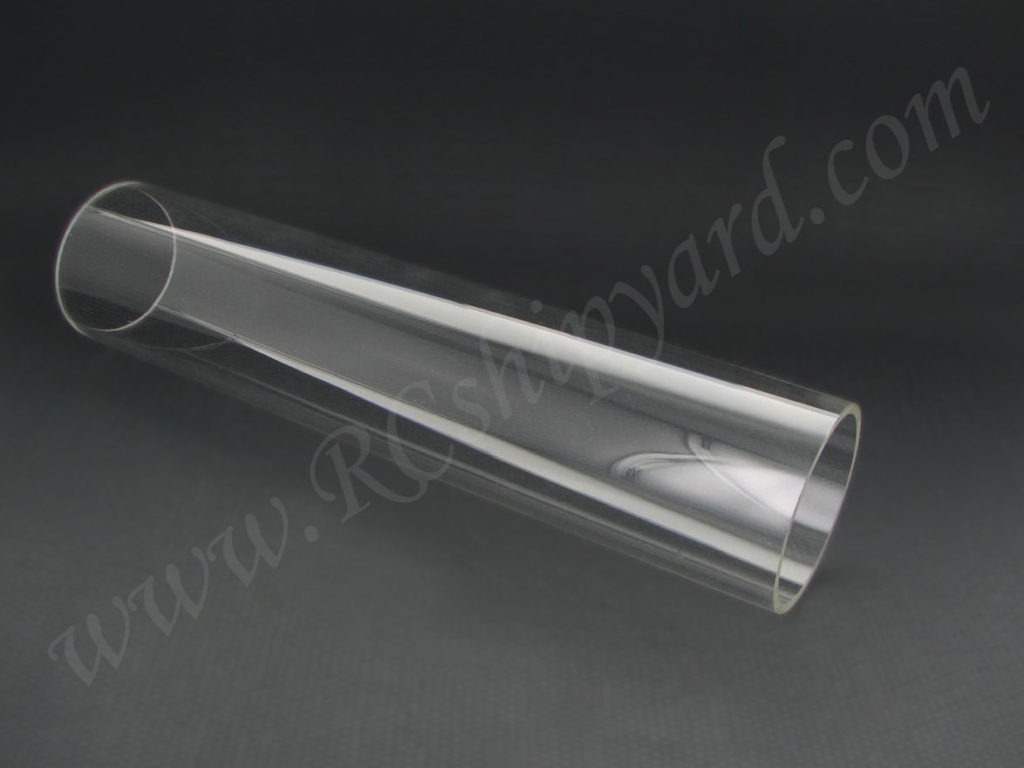

Polycarbonate “plexi” transparent tube 50mm x 300mm (diameter x length)
Design and make your own WTC! This is an essential element in every DIY WTC – a transparent tube housing all the electronics and keeping the water out.
Specification
- Inner diameter: 46mm (tolerance 0.8mm)
- Outer diameter: 50mm (tolerance 0.6mm)
- wall thickness: 2mm (tolerance 0.6mm)
- Length: 300mm
Please notice that transparent tubes, due to the method of their production, may have slightly different diameters. All tolerance values are stated above. When buying the tube from us, we can quarantine you that all the WTC modules, endcaps and Fitting Kits will be compatible and will fit the tube nicely!
Polycarbonate “plexi” transparent tube 50mm x 400mm (diameter x length)
Design and make your own WTC! This is an essential element in every DIY WTC – a transparent tube housing all the electronics and keeping the water out.
Specification
- Inner diameter: 46mm (tolerance 0.8mm)
- Outer diameter: 50mm (tolerance 0.6mm)
- wall thickness: 2mm (tolerance 0.6mm)
- Length: 400mm
Please notice that transparent tubes, due to the method of their production, may have slightly different diameters. All tolerance values are stated above. When buying the tube from us, we can quarantine you that all the WTC modules, endcaps and Fitting Kits will be compatible and will fit the tube nicely!
Polycarbonate “plexi” transparent tube with a diameter of 50mm and your chosen length.
The price is per 10cm, so If you want a 60cm tube, you need to order this item 6 times.
Design and make your own WTC! This is an essential element in every DIY WTC – a transparent tube housing all the electronics and keeping the water out.
Specification
- Inner diameter: 46mm (tolerance 0.8mm)
- Outer diameter: 50mm (tolerance 0.6mm)
- wall thickness: 2mm (tolerance 0.6mm)
- Length: 100mm.
The price is per 10cm, so If you want a 60cm tube, you need to order this item 6 times. Contact me if you would like to order a non standard length (for example 44cm, 56cm, etc…)
Please notice that transparent tubes, due to the method of their production, may have slightly different diameters. All tolerance values are stated above. When buying the tube from us, we can quarantine you that all the WTC modules, endcaps and Fitting Kits will be compatible and will fit the tube nicely!
Servo compartment module for the 50mm module and 34mm rack.
This is a shorter version of the servo compartment module for a tube with 46mm inner diameter and 50mm outer diameter (1.8/2inches).
- Designed for 50mm tube
- Tray rack size: 34mm
- Element length: 38mm
- Max servo size: 13×23.6mm (width x length)
- Two servo mounts (for example 2x Corona CS939MG)
This includes:

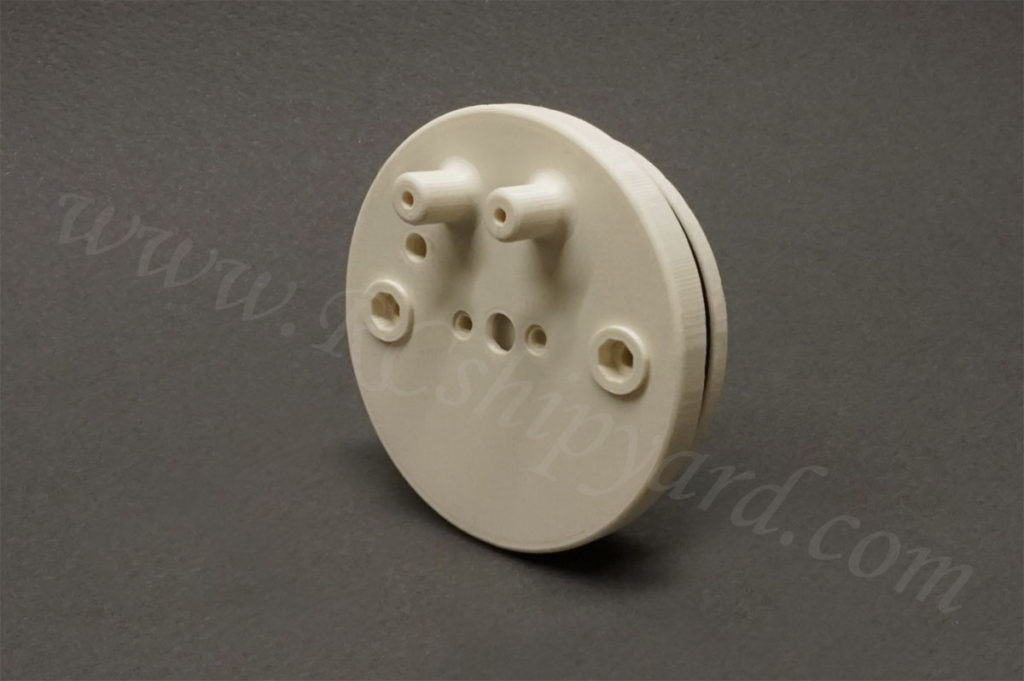

Stern (rear) cap for a 50mm/2inch O.D. Tube.
This is the stern (rear) cap for a 46mm inner diameter and 50mm outer diameter tube (1.8/2inches).
The stern cap includes two mounts for rubber bellows, water inlet hole (or for breather tube), motor (or gearbox) mount holes, and motor shafts seal for a 3mm shaft.
This includes:
- Plastic cap
- 1 oring
- 1 shaft seal (for motor with a 3mm shaft)
- 2 rubber bellows (pushrod seals)
If you want your mounting holes for the motor in a different size or spread. Please contact me first. If it will be possible to manufacture it without any additional costs.
Stern (rear) cap for a 60mm/2.36inch O.D. Tube.
This is the aft (rear) cap for a 54mm inner diameter and 60mm outer diameter tube (2.125/2.36inches).
The stern cap includes two mounts for rubber bellows, water inlet hole (or for breather tube), motor (or gearbox) mount holes, and motor shafts seal for a 4mm shaft.
This includes:
- Plastic cap
- 1 oring
- 1 shaft seal (for motor with a 4mm shaft)
- 2 rubber bellows (pushrod seals)
If you want your mounting holes for the motor in a different size or spread. Please contact me first. If it will be possible to manufacture it without any additional costs.
